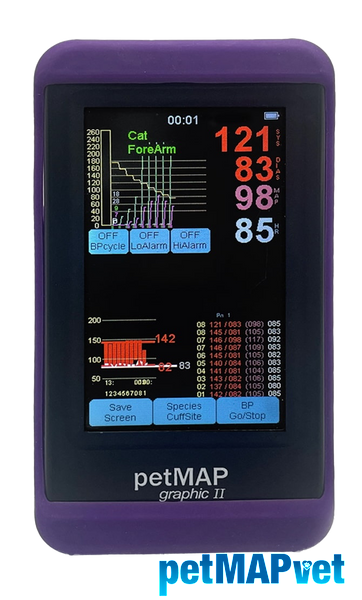

petMAP graphic II - veterinary blood pressure and heart rate monitor

The petMAP graphic II is a compact, lightweight and portable new generation device for non-invasive blood pressure (SBP) and heart rate (HR) measurement in animals. Designed specifically for veterinary practice, this device provides reliable measurement and easy-to-use visual representation of data - both numerically and graphically. All readings can be stored on an SD card via the built-in slot, making it easy to keep a monitoring history.

Advantages and features of petMAP graphic II

• PPO (PetMAP Proprietary Optimizations) technology - automatically adjusts for accurate measurement depending on the type of animal and cuff location.
• Touchscreen display without menus - operating the device is as easy as on a smartphone.
• Real-time oscillometric curve - for detailed blood pressure monitoring.
• Ability to set the measurement cycle interval - automatic reminder of the next measurement.
• Tabular and graphical display of data, including the last 45 readings and the nominal session value (NSV).
• SD memory card - for saving all BP and HR values, even without screen images.
• Mounting options: pole mount, case, and AC/DC power adapter (optional).

Specifications

• Blood pressure range:
• Systolic blood pressure: 40 - 265 mmHg.
• Mean blood pressure (MAP): 30 - 200 mmHg.
• Diastolic blood pressure: 25 - 195 mm Hg.
• Heart rate: 40 - 240 beats per minute
• Dimensions: 152.4 mm x 81.28 mm x 31.75 mm (HxWxD)
• Weight: 450 g (with batteries)
• Power supply: 4 AA alkaline batteries (included)

Available accessories

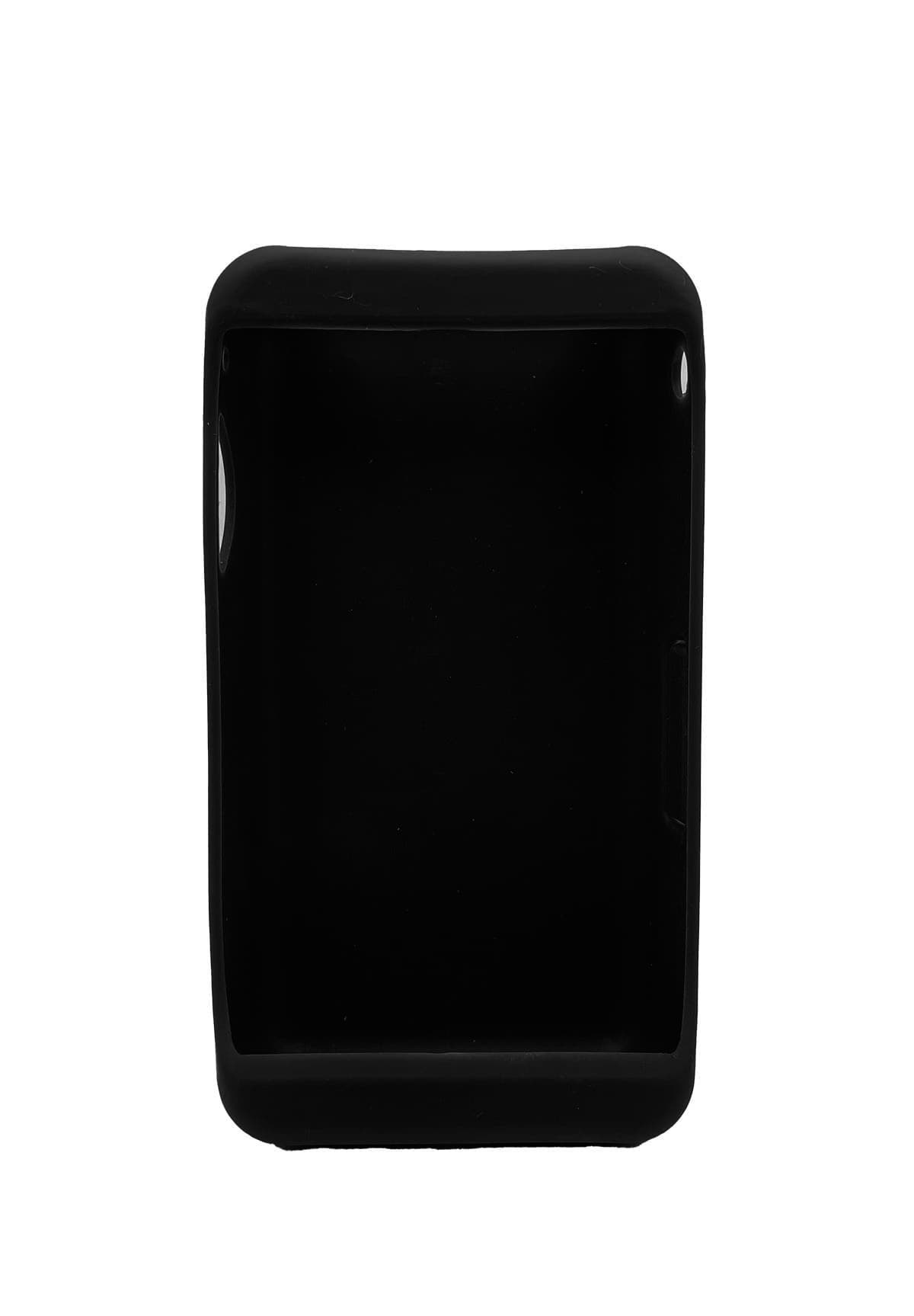

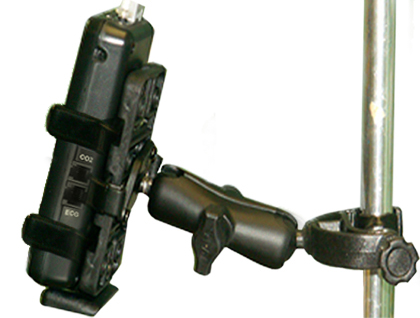

Mounting on the bar №: 9011	Case №: 9015

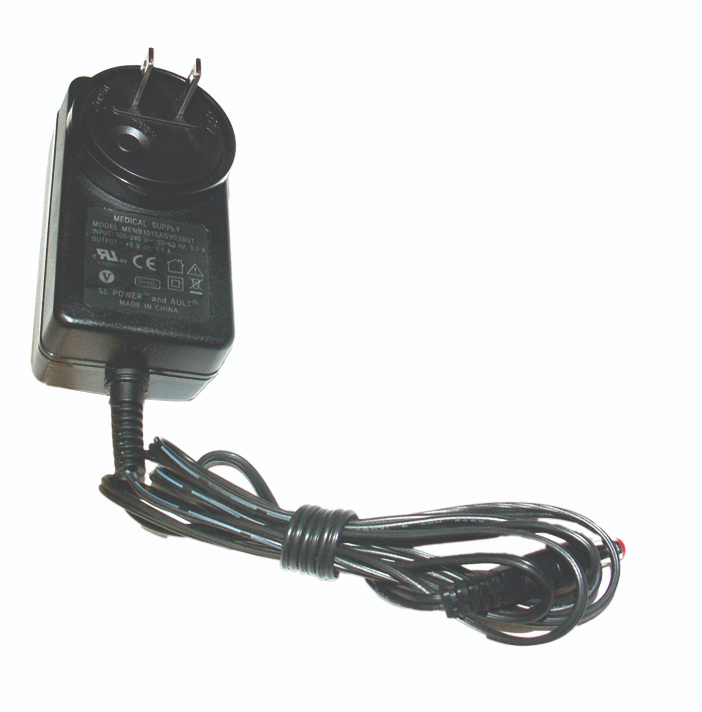

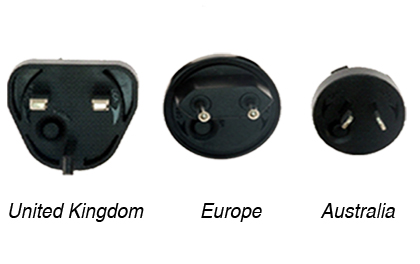

DC/AC adapter №: 9012	International standard adapter plugs №: 9008

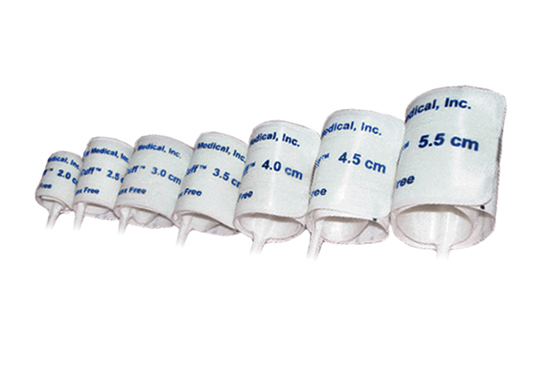

Cuffs for animals CritterCuff

Cuffs for measuring blood pressure	Size	№
	2,0 cm 2,5 cm 3,0 cm 3,5 cm 4,0 cm 4,5 cm 5,0 cm	8050 8051 8052 8053 8054 8055 8056
CritterCuff animal cuffs complete with petMAP graphic II system

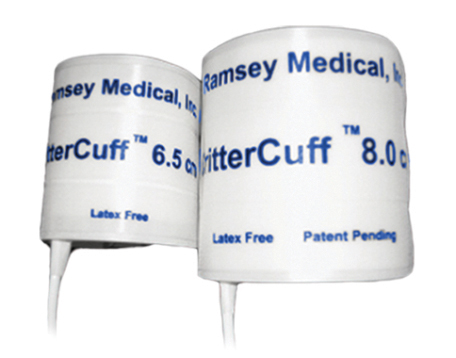

	5,5 см 6,5 см 8,0 см 10,0 см 13,0 см	8057* 8058* 8059* 8060* 8061*
*Sold separately, not included in the petMAP graphic II system

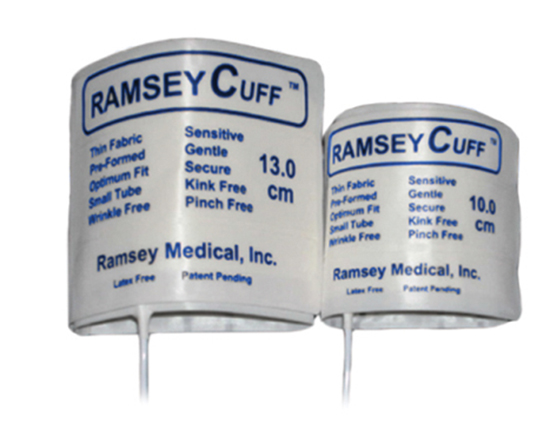

RamseyCuff

Sold separately, not included in the petMAP graphic II system

petMAP graphic II is a modern, convenient and accurate blood pressure monitor that will become a reliable tool in your daily veterinary practice. Order original equipment on petMAP.vet with an official warranty.
